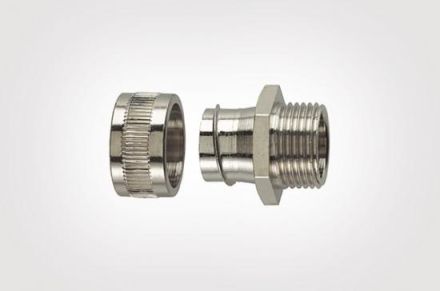

HellermannTyton 166-30323 SSC16-FM-M16-SS-ML-1 HelaGuard metal cable gland

HellermannTyton 166-30323 SSC16-FM-M16-SS-ML-1 HelaGuard metal cable gland

In stock

SKU: 630839

Price on request

€84.53

€0

Into a basketIn the basketGo

Overview

Multi-part screw connection with external thread. Highly resistant to corrosion and rust. Provides tightness and secure hold of the hose. Can be fastened with a lock nut. Rigid external thread, corrosion-resistant stainless steel.

Property	Value
Protection class (IP) depending on hose:	40
Nominal diameter:	16 mm
Smallest inner diameter of the hose:	11.5 mm
Thread connection size:	M16 x 1.5
Total length:	25.0 mm
Total height:	19 mm
Thread length:	10.0 mm
Rotatable thread:	no
Nominal size in inches:	other
Design:	straight
Construction:	external thread
One-piece:	no
Material of the housing:	stainless steel
Surface:	untreated
Operating temperature:	-100 to 600 °C
Thread number:	1
Thread type:	metric
Type of screw connection to the housing:	thread

Characteristics

One-pieceNo

Total height19 mm

Connection type of screw connection to the housingThread

Smallest inner diameter of the hose11.5 mm

Protection class (IP) depends on hose40

Thread Number of turns1

HABSSC16-FM-M16-SS-ML-1 HelaGuard

Manufacturer

HAN166-30323

GTIN4031026306261

VersionStraight

DesignExternal thread

Rotating threadNo

Operating temperature-100 to 600 °C

Overall length25.0 mm

Thread connection sizeM16x1.5

Thread typeMetric

Thread length10.0 mm

Nominal diameter16 mm

Nominal size in inchesOther

SurfaceUntreated

Housing materialStainless steel

HellermannTyton 166-30323 SSC16-FM-M16-SS-ML-1 HelaGuard metal cable gland

HellermannTyton 166-30323 SSC16-FM-M16-SS-ML-1 HelaGuard metal cable gland

Price on request

€84.53

€0

Into a basketIn the basketGo
