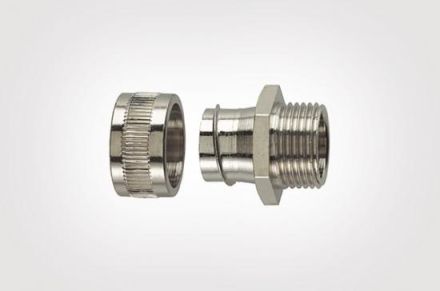

HellermannTyton 166-30326 SSC32-FM-M32-SS-ML-1 HelaGuard metal cable gland

HellermannTyton 166-30326 SSC32-FM-M32-SS-ML-1 HelaGuard metal cable gland

In stock

SKU: 630842

Price on request

€125.26

€0

Into a basketIn the basketGo

Overview

Multi-part screw connection with external thread. Highly resistant to corrosion and rust. Provides tightness and secure hold of the hose. Can be fastened with a lock nut. Rigid external thread, corrosion-resistant stainless steel.

Property	Value
Protection class (IP) depending on hose:	40
Nominal diameter:	32 mm
Smallest inner diameter of the hose:	26.2 mm
Thread connection size:	M32 x 1.5
Total length:	36.8 mm
Total height:	36 mm
Thread length:	13.0 mm
Rotatable thread:	no
Nominal size in inches:	other
Design:	straight
Construction:	external thread
One-piece:	no
Material of the housing:	stainless steel
Surface:	untreated
Operating temperature:	-100 to 600 °C
Thread number:	1
Thread type:	metric
Type of screw connection to the housing:	thread

Characteristics

One-pieceNo

Total height36 mm

Connection type of screw connection to the housingThread

Smallest inner diameter of the hose26.2 mm

Protection class (IP) depends on hose40

Thread Number of turns1

HABSSC32-FM-M32-SS-ML-1 HelaGuard

Manufacturer

HAN166-30326

GTIN4031026306292

VersionStraight

DesignExternal thread

Rotating threadNo

Operating temperature-100 to 600 °C

Overall length36.8 mm

Thread connection sizeM32x1.5

Thread typeMetric

Thread length13.0 mm

Nominal diameter32 mm

Nominal size in inchesOther

SurfaceUntreated

Housing materialStainless steel
