HellermannTyton 166-30424 SSC32-SM-M32-SS-ML-1 HelaGuard metal cable gland

In stock

SKU: 630869

Price on request

€162.01

€0

Overview

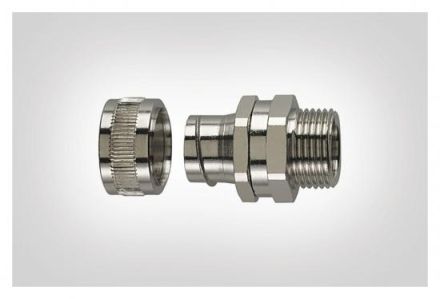

Multi-part screw connection with external thread. Rotating external thread on the main part. Highly resistant to corrosion and rust. Provides tightness and secure hold of the hose. Can be fastened with a lock nut. Rotating external thread, corrosion-resistant stainless steel.

Property	Value
Protection class (IP) depending on hose:	40
Nominal diameter:	32 mm
Smallest inner diameter of the hose:	26.2 mm
Thread connection size:	M32 x 1.5
Total length:	48.0 mm
Total height:	38 mm
Thread length:	13.0 mm
Rotatable thread:	yes
Nominal size in inches:	other
Design:	straight
Construction:	external thread
One-piece:	no
Material of the housing:	stainless steel
Surface:	untreated
Operating temperature:	-100 to 600 °C
Thread number:	1
Thread type:	metric
Type of screw connection to the housing:	thread
