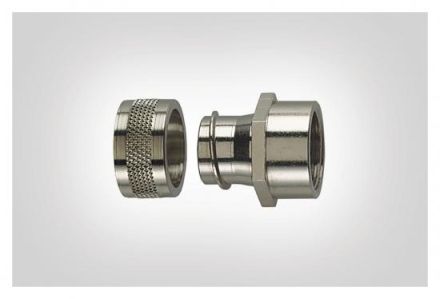

HellermannTyton 166-30603 SC32-FF-M32-NPB-ML-2 HelaGuard metal screw connection

In stock
SKU: 630883
€19.80
Into a basketIn the basketGo

Overview

Multi-part screw connection with internal thread. Provides tightness and secure hold of the hose. Suitable for connecting to a second hose that has a rotating thread. Rigid internal thread, nickel-plated brass.

PropertyValue
Protection class (IP) depending on hose:40
Nominal diameter:32 mm
Thread connection size:M32 x 1.5
Total length:33.3 mm
Thread length:13.0 mm
Rotatable thread:no
Nominal size in inches:other
Design:straight
Design:internal thread
One-piece:no
Material of the housing:brass
Surface:nickel-plated
Operating temperature:-100 to 300 °C
Thread number:1
Thread type:metric
Type of screw connection to the housing:thread

Characteristics

One-pieceNo
Connection type of screw connection to the housingThread
Protection class (IP) depends on hose40
Thread Number of turns1
HABSC32-FF-M32-NPB-ML-2 HelaGuard
Minimal order2 pieces
ManufacturerHellermannTyton
HAN166-30603
GTIN4031026306704
VersionStraight
DesignInner thread
Rotating threadNo
Operating temperature-100 to 300 °C
Overall length33.3 mm
Thread connection sizeM32x1.5
Thread typeMetric
Thread length13.0 mm
Nominal diameter32 mm
Nominal size in inchesOther
SurfaceNickel-plated
Housing materialBrass
