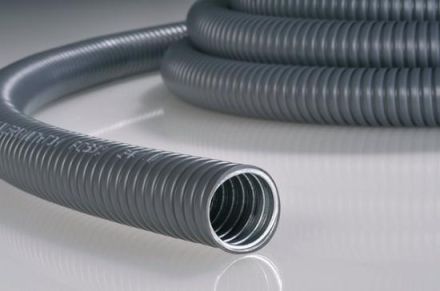

HellermannTyton 166-30727 PCS32-GS/PVC-GY-10M HelaGuard metal conduit

In stock

SKU: 630760

Price on request

€25.65

€0

Overview

High pressure, impact and tensile strengthHighly flexibleGood resistance to alkalis, acids and chemicalsColor: BlackThe flexible protective hose made of galvanized steel with PVC sheath is used in mechanical and plant engineering.

Property	Value
Nominal diameter:	32 mm
Surface:	galvanized
Sheathing material 1st layer:	PVC, oil-resistant
Sheathing material 2nd layer (outer):	without sheath
Approval according to DIN EN 61386-23:	no
Nominal size in inches:	other
Inner diameter:	28.1 mm
Outer diameter:	34.0 mm
Seal:	without seal
Operating temperature:	70 °C
Bending radius, static:	60 mm
Weight:	0.56 kg/m
Color:	gray
Electrical properties:	not clarified
Flame propagating:	no
Use in Ex areas:	no
Approval according to BWB:	no
Approval according to VDE-EMV/emc:	no
Approval according to FI:	no
With approval according to UL:	no
Approval according to CSA:	no
Material:	steel
Protection class (IP):	IP66
Bending behavior:	flexible
