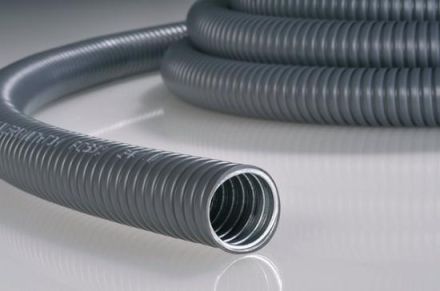

HellermannTyton 166-30729 PCS50-GS/PVC-GY-10M HelaGuard metal conduit

In stock
SKU: 630762
€58.87
Into a basketIn the basketGo

Overview

High pressure, impact and tensile strengthHighly flexibleGood resistance to alkalis, acids and chemicalsColor: BlackThe flexible protective hose made of galvanized steel with PVC sheath is used in mechanical and plant engineering.

PropertyValue
Nominal diameter:50 mm
Surface:galvanized
Sheathing material 1st layer:PVC, oil-resistant
Sheathing material 2nd layer (outer):without sheathing
Approval according to DIN EN 61386-23:no
Nominal size in inches:other
Inner diameter:48.4 mm
Outer diameter:55.0 mm
Seal:without seal
Operating temperature:70 °C
Bending radius, static:90 mm
Weight:1.05 kg/m
Color:gray
Electrical properties:not clarified
Flame propagating:no
Use in Ex areas:no
Approval according to BWB:no
Approval according to VDE-EMV/emc:no
Approval according to FI:no
With approval according to UL:no
Approval according to CSA:no
Material:steel
Protection class (IP):IP66
Bending behavior:flexible

Characteristics

Inner diameter48.4 mm
Use in Ex areaNo
Bending radius, static90 mm
Bending behaviorFlexibel
Flame propagatingNo
HABPCS50-GS/PVC-GY-10M HelaGuard
Minimal order10 meters
ManufacturerHellermannTyton
HAN166-30729
GTIN4031026327655
Outer diameter55.0 mm
Operating temperature70°C
ColorGray
Weight1.05 kg/m
Nominal diameter50 mm
Nominal size in inchesOther
SurfaceGalvanized
MaterialSteel
HellermannTyton 166-30729 PCS50-GS/PVC-GY-10M HelaGuard metal conduit
HellermannTyton 166-30729 PCS50-GS/PVC-GY-10M HelaGuard metal conduit
€58.87
Into a basketIn the basketGo
