HellermannTyton 166-30801 NCS16-GS/PA6-BK-25M HelaGuard metal conduit

In stock
SKU: 630766
€12.89
Into a basketIn the basketGo

Overview

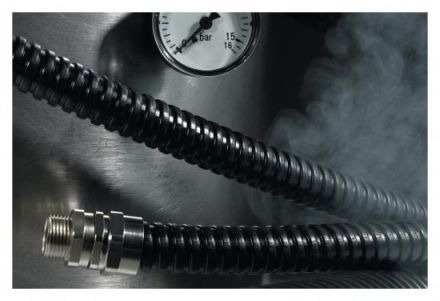

High temperature resistant. Good abrasion resistance. High pressure, impact and tensile strength. Highly flexible. Good resistance to alkalis, acids and chemicals. The flexible protective hose made of galvanized steel with PA6 sheath is suitable for demanding applications where very good resistance to high temperatures or acids and solvents is required.

PropertyValue
Nominal diameter:16 mm
Surface:galvanized
Sheathing material 1st layer:polyamide (PA)
Sheathing material 2nd layer (outer):without sheathing
Approval according to DIN EN 61386-23:no
Nominal size in inches:other
Inner diameter:12.9 mm
Outer diameter:17.1 mm
Seal:without seal
Operating temperature:-40 to 120 °C
Bending radius, static:40 mm
Weight:0.17 kg/m
Color:black
Electrical properties:not clarified
Flame propagating:no
Use in Ex areas:no
Approval according to BWB:no
Approval according to VDE-EMV/emc:no
Approval according to FI:no
With approval according to UL:no
Approval according to CSA:no
Material:steel
Protection class (IP):IP66
Bending behavior:flexible

Characteristics

Inner diameter12.9 mm
Use in Ex areaNo
Bending radius, static40 mm
Bending behaviorFlexibel
Flame propagatingNo
HABNCS16-GS/PA6-BK-25M HelaGuard
Minimal order25 meters
ManufacturerHellermannTyton
HAN166-30801
GTIN4031026319865
Outer diameter17.1 mm
Operating temperature-40 to 120 °C
ColorBlack
Weight0.17 kg/m
Nominal diameter16 mm
Nominal size in inchesOther
SurfaceGalvanized
IP protection)IP66
MaterialSteel
