HellermannTyton 166-30802 NCS20-GS/PA6-BK-25M HelaGuard metal conduit

In stock
SKU: 630767
€18.99
Into a basketIn the basketGo

Overview

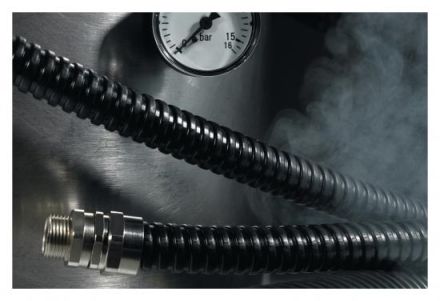

High temperature resistantGood abrasion resistanceHigh pressure, impact and tensile strengthHighly flexibleGood resistance to alkalis, acids and chemicalsThe flexible protective hose made of galvanized steel with PA6 sheath is suitable for demanding applications where very good resistance to high temperatures or acids and solvents is required.

PropertyValue
Nominal diameter:20 mm
Surface:galvanized
Sheathing material 1st layer:polyamide (PA)
Sheathing material 2nd layer (outer):without sheath
Approval according to DIN EN 61386-23:no
Nominal size in inches:other
Inner diameter:16.8 mm
Outer diameter:21.6 mm
Seal:without seal
Operating temperature:120 °C
Bending radius, static:45 mm
Weight:0.35 kg/m
Color:black
Electrical properties:not clarified
Flame propagating:no
Use in Ex areas:no
Approval according to BWB:no
Approval according to VDE-EMV/emc:no
Approval according to FI:no
With approval according to UL:no
Approval according to CSA:no
Material:steel
Protection class (IP):IP66
Bending behavior:flexible

Characteristics

Inner diameter16.8 mm
Use in Ex areaNo
Bending radius, static45 mm
Bending behaviorFlexibel
Flame propagatingNo
HABNCS20-GS/PA6-BK-25M HelaGuard
Minimal order25 meters
ManufacturerHellermannTyton
HAN166-30802
GTIN4031026319872
Outer diameter21.6 mm
Operating temperature120°C
ColorBlack
Weight0.35 kg/m
Nominal diameter20 mm
Nominal size in inchesOther
SurfaceGalvanized
MaterialSteel
