HellermannTyton 166-31009 PCS63-FM-M63-NPB-ML HelaGuard metal cable gland

HellermannTyton 166-31009 PCS63-FM-M63-NPB-ML HelaGuard metal cable gland

In stock

SKU: 630893

Price on request

€68.41

€0

Into a basketIn the basketGo

Overview

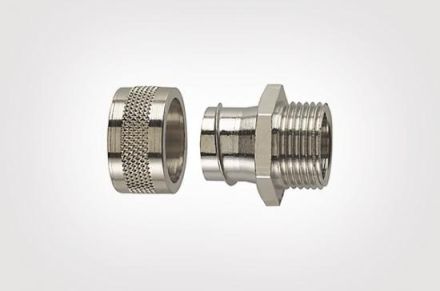

Two-part screw connection with external thread. Provides tightness and secure hold of the hose. Can be fastened with a lock nut. Rigid external thread, nickel-plated brass. Complies with IP54.

Property	Value
Protection class (IP) depending on hose:	54
Nominal diameter:	63 mm
Smallest inner diameter of the hose:	54.5 mm
Thread connection size:	M63 x 1.5
Total length:	50.0 mm
Total height:	70.0 mm
Thread length:	18.0 mm
Rotatable thread:	no
Nominal size in Inch:	other
Version:	straight
Design:	external thread
One-piece:	no
Material of the housing:	brass
Surface:	nickel-plated
Operating temperature:	-100 to 300 °C
Thread number:	1
Thread type:	metric
Type of screw connection to the housing:	thread

Characteristics

One-pieceNo

Total height70.0 mm

Connection type of screw connection to the housingThread

Smallest inner diameter of the hose54.5 mm

Protection class (IP) depends on hose54

Thread Number of turns1

HABPCS63-FM-M63-NPB-ML HelaGuard

Manufacturer

HAN166-31009

GTIN4031026307008

VersionStraight

DesignExternal thread

Rotating threadNo

Operating temperature-100 to 300 °C

Overall length50.0 mm

Thread connection sizeM63x1.5

Thread typeMetric

Thread length18.0 mm

Nominal diameter63 mm

Nominal size in inchesOther

SurfaceNickel-plated

Housing materialBrass
