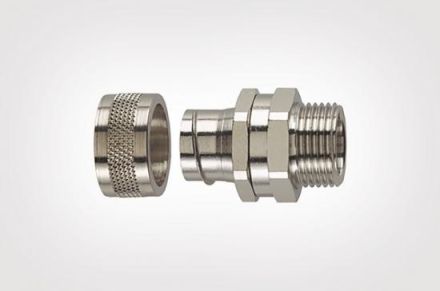

HellermannTyton 166-31105 PCS25-SM-M25-NPB-ML HelaGuard metal cable gland

HellermannTyton 166-31105 PCS25-SM-M25-NPB-ML HelaGuard metal cable gland

In stock

SKU: 630908

Price on request

€16.34

€0

Into a basketIn the basketGo

Overview

Multi-part screw connection with external thread. External thread on the main part. Provides tightness and secure hold of the hose. Can be fastened with a lock nut. Rotating external thread, nickel-plated brass with steel ring.

Property	Value
Protection class (IP) depending on hose:	54
Nominal diameter:	25 mm
Smallest inner diameter of the hose:	19.1 mm
Thread connection size:	M25 x 1.5
Total length:	43.7 mm
Total height:	29.0 mm
Thread length:	12.0 mm
Rotatable thread:	yes
Nominal size in inches:	other
Design:	straight
Design:	external thread
One-piece:	no
Material of the housing:	brass
Surface:	nickel-plated
Operating temperature:	-100 to 300 °C
Thread number:	1
Thread type:	metric
Type of screw connection to the housing:	thread

Characteristics

One-pieceNo

Total height29.0 mm

Connection type of screw connection to the housingThread

Smallest inner diameter of the hose19.1 mm

Protection class (IP) depends on hose54

Thread Number of turns1

HABPCS25-SM-M25-NPB-ML HelaGuard

Minimal order10 pieces

Manufacturer

HAN166-31105

GTIN4031026307169

VersionStraight

DesignExternal thread

Rotating threadYes

Operating temperature-100 to 300 °C

Overall length43.7 mm

Thread connection sizeM25x1.5

Thread typeMetric

Thread length12.0 mm

Nominal diameter25 mm

Nominal size in inchesOther

SurfaceNickel-plated

Housing materialBrass
