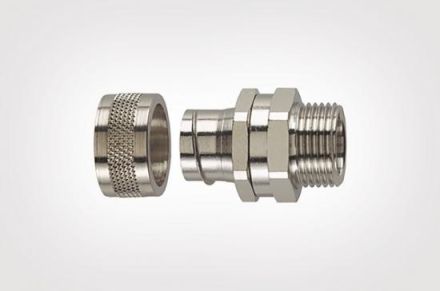

HellermannTyton 166-31115 PCS25-SM-PG21-NPB-ML HelaGuard metal cable gland

In stock
SKU: 630918
€13.57
Into a basketIn the basketGo

Overview

Multi-part screw connection with external thread. External thread on the main part. Provides tightness and secure hold of the hose. Can be fastened with a lock nut. Rotating external thread, nickel-plated brass with steel ring.

PropertyValue
Protection class (IP) depending on hose:54
Nominal diameter:25 mm
Smallest inner diameter of hose:19.1 mm
Thread connection size:PG21
Total length:43.7 mm
Total height:26.0 mm
Thread length:12.0 mm
Rotatable thread:yes
Nominal size in inches:other
Design:straight
Construction:external thread
One-piece:no
Material of the housing:brass
Surface:nickel-plated
Operating temperature:-100 to 300 °C
Thread number:1
Thread type:other
Type of connection of the screw connection to the housing:thread

Characteristics

One-pieceNo
Total height26.0 mm
Connection type of screw connection to the housingThread
Smallest inner diameter of the hose19.1 mm
Protection class (IP) depends on hose54
Thread Number of turns1
HABPCS25-SM-PG21-NPB-ML HelaGuard
Minimal order10 pieces
ManufacturerHellermannTyton
HAN166-31115
GTIN4031026307268
VersionStraight
DesignExternal thread
Rotating threadYes
Operating temperature-100 to 300 °C
Overall length43.7 mm
Thread connection sizePG21
Thread typeOther
Thread length12.0 mm
Nominal diameter25 mm
Nominal size in inchesOther
SurfaceNickel-plated
Housing materialBrass
