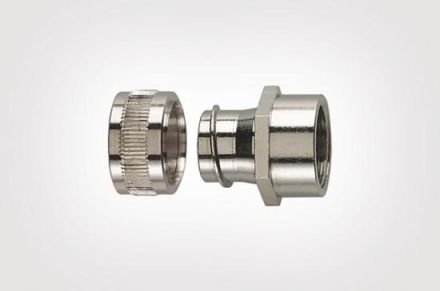

HellermannTyton 166-31303 PCS32-FF-M32-NPB-ML HelaGuard metal cable gland

In stock
SKU: 630935
€26.62
Into a basketIn the basketGo

Overview

Two-part screw connection with internal thread. Provides tightness and secure hold of the hose. Suitable for connecting to a second hose that has a rotating thread. Rigid internal thread, nickel-plated brass.

PropertyValue
Protection class (IP) depending on hose:54
Nominal diameter:32 mm
Thread connection size:M32 x 1.5
Total length:33.3 mm
Thread length:13.0 mm
Rotatable thread:no
Nominal size in inches:other
Design:straight
Design:internal thread
One-piece:no
Material of the housing:brass
Surface:nickel-plated
Operating temperature:-100 to 300 °C
Thread number:1
Thread type:metric
Type of screw connection to the housing:thread

Characteristics

One-pieceNo
Connection type of screw connection to the housingThread
Protection class (IP) depends on hose54
Thread Number of turns1
HABPCS32-FF-M32-NPB-ML HelaGuard
Minimal order10 pieces
ManufacturerHellermannTyton
HAN166-31303
GTIN4031026307435
VersionStraight
DesignInner thread
Rotating threadNo
Operating temperature-100 to 300 °C
Overall length33.3 mm
Thread connection sizeM32x1.5
Thread typeMetric
Thread length13.0 mm
Nominal diameter32 mm
Nominal size in inchesOther
SurfaceNickel-plated
Housing materialBrass
