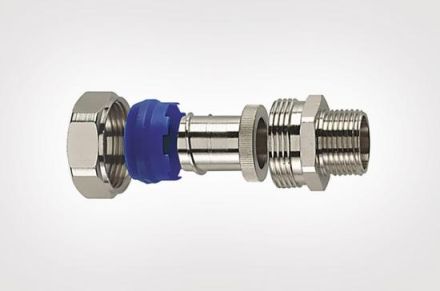

HellermannTyton 166-31401 PCS12-FMC-M16-NPB/PA HelaGuard metal cable gland

HellermannTyton 166-31401 PCS12-FMC-M16-NPB/PA HelaGuard metal cable gland

In stock

SKU: 630937

Price on request

€13.81

€0

Into a basketIn the basketGo

Overview

Multi-part screw connection including elastomer seal. Excellent tensile strength. Can be used to attach the hose. Rigid external thread, nickel-plated brass.

Property	Value
Protection class (IP) depending on hose:	65
Nominal diameter:	12 mm
Smallest inner diameter of the hose:	8.6 mm
Thread connection size:	M16 x 1.5
Total length:	29.8 mm
Total height:	22.0 mm
Thread length:	10.0 mm
Rotatable thread:	no
Nominal size in inches:	other
Design:	straight
Design:	external thread
One-piece:	no
Material of the housing:	brass
Surface:	nickel-plated
Operating temperature:	-50 to 135 °C
Thread number:	1
Thread type:	metric
Type of screw connection to the housing:	thread

Characteristics

One-pieceNo

Total height22.0 mm

Connection type of screw connection to the housingThread

Smallest inner diameter of the hose8.6 mm

Protection class (IP) depends on hose65

Thread Number of turns1

HABPCS12-FMC-M16-NPB/PA HelaGuard

Minimal order10 pieces

Manufacturer

HAN166-31401

GTIN4031026307459

VersionStraight

DesignExternal thread

Rotating threadNo

Operating temperature-50 to 135 °C

Overall length29.8 mm

Thread connection sizeM16x1.5

Thread typeMetric

Thread length10.0 mm

Nominal diameter12 mm

Nominal size in inchesOther

SurfaceNickel-plated

Housing materialBrass
