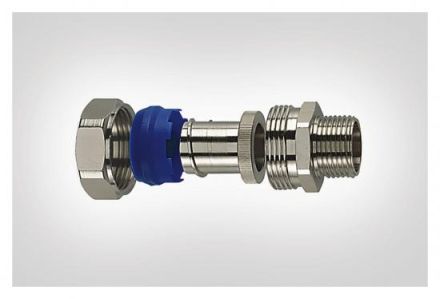

HellermannTyton 166-31402 PCS16-FMC-M16-NPB/PA HelaGuard metal cable gland

HellermannTyton 166-31402 PCS16-FMC-M16-NPB/PA HelaGuard metal cable gland

In stock

SKU: 630938

Price on request

€13.01

€0

Into a basketIn the basketGo

Overview

Multi-part screw connection including elastomer seal. Excellent tensile strength. Can be used to attach the hose. Rigid external thread, nickel-plated brass.

Property	Value
Protection class (IP) depending on hose:	65
Nominal diameter:	16 mm
Smallest inner diameter of the hose:	11.5 mm
Thread connection size:	M16 x 1.5
Total length:	33.0 mm
Total height:	24.0 mm
Thread length:	12.0 mm
Rotatable thread:	no
Nominal size in Inch:	other
Version:	straight
Design:	external thread
One-piece:	no
Material of the housing:	brass
Surface:	nickel-plated
Operating temperature:	-50 to 135 °C
Thread number:	1
Thread type:	metric
Type of connection of the screw connection to the housing:	thread

Characteristics

One-pieceNo

Total height24.0 mm

Connection type of screw connection to the housingThread

Smallest inner diameter of the hose11.5 mm

Protection class (IP) depends on hose65

Thread Number of turns1

HABPCS16-FMC-M16-NPB/PA HelaGuard

Minimal order10 pieces

Manufacturer

HAN166-31402

GTIN4031026307466

VersionStraight

DesignExternal thread

Rotating threadNo

Operating temperature-50 to 135 °C

Overall length33.0 mm

Thread connection sizeM16x1.5

Thread typeMetric

Thread length12.0 mm

Nominal diameter16 mm

Nominal size in inchesOther

SurfaceNickel-plated

Housing materialBrass
