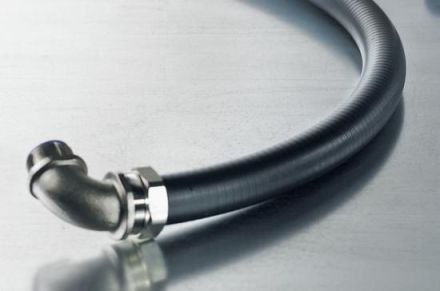

HellermannTyton 166-31908 LTS63-GS/PVC-BK-10M HelaGuard metal conduit

In stock
SKU: 630780
€83.65
Into a basketIn the basketGo

Overview

Liquid-tight (IP68 and IP96k with LTS screw connections). High pressure, impact and tensile strength. Good flexibility. Smooth outer jacket that does not wrinkle when bent. Resistant to oils, greases, petrol and acids. Suitable for outdoor use. The flexible protective hose made of galvanized steel with a smooth outer jacket is suitable for machine tools and outdoor installations that must be liquid-tight.

PropertyValue
Nominal diameter:63 mm
Surface:galvanized
Sheathing material 1st layer:PVC, oil-resistant
Sheathing material 2nd layer (outer):without sheath
Nominal size in inches:2 inches
Inner diameter:51.6 mm
Outer diameter:59.7 mm
Seal:special thread seal
Operating temperature:-20 to 105 °C
Bending radius, static:280 mm
Weight:1.47 kg/m
Color:black
Electrical properties:not clarified
Flame propagating:no
Use in hazardous areas:yes
Material:steel
Protection class (IP):IP68
Bending behavior:flexible

Characteristics

Inner diameter51.6 mm
Use in Ex areaYes
Bending radius, static280 mm
Bending behaviorFlexibel
Flame propagatingNo
HABLTS63-GS/PVC-BK-10M HelaGuard
Minimal order10 meters
ManufacturerHellermannTyton
HAN166-31908
GTIN4031026307886
Outer diameter59.7 mm
Operating temperature-20 to 105 °C
ColorBlack
Weight1.47 kg/m
Nominal diameter63 mm
Nominal size in inches2 inches
SurfaceGalvanized
IP protection)IP68
MaterialSteel
