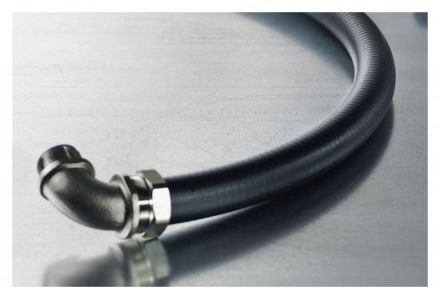

HellermannTyton 166-31912 LTS20-GS/PVC-BK-10M HelaGuard metal conduit

In stock
SKU: 630783
€17.53
Into a basketIn the basketGo

Overview

Liquid-tight (IP68 and IP96k with LTS screw connections). High pressure, impact and tensile strength. Good flexibility. Smooth outer jacket that does not wrinkle when bent. Resistant to oils, greases, petrol and acids. Suitable for outdoor use. The flexible protective hose made of galvanized steel with a smooth outer jacket is suitable for machine tools and outdoor installations that must be liquid-tight.

PropertyValue
Nominal diameter:20 mm
Surface:galvanized
Coating material 1st layer:PVC, oil-resistant
Coating material 2nd layer (outer):without coating
Nominal size in inches:1/2 inch
Inner diameter:16.0 mm
Outer diameter:21.1 mm
Seal:special thread seal
Operating temperature:-20 to 105 °C
Bending radius, static:65 mm
Weight:0.41 kg/m
Color:black
Electrical properties:not clarified
Flame propagating:no
Use in hazardous areas:yes
Material:steel
Protection class (IP):IP68
Bending behavior:flexible

Characteristics

Inner diameter16.0 mm
Use in Ex areaYes
Bending radius, static65 mm
Bending behaviorFlexibel
Flame propagatingNo
HABLTS20-GS/PVC-BK-10M HelaGuard
Minimal order10 meters
ManufacturerHellermannTyton
HAN166-31912
GTIN4031026319919
Outer diameter21.1 mm
Operating temperature-20 to 105 °C
ColorBlack
Weight0.41 kg/m
Nominal diameter20 mm
Nominal size in inches1/2 inch
SurfaceGalvanized
IP protection)IP68
MaterialSteel
