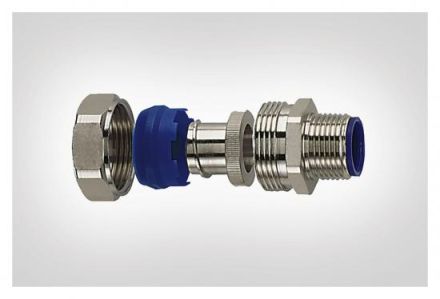

HellermannTyton 166-32208 LTS32-FMC-M32-NPB/PA HelaGuard metal cable gland

HellermannTyton 166-32208 LTS32-FMC-M32-NPB/PA HelaGuard metal cable gland

In stock

SKU: 630979

Price on request

€38.20

€0

Into a basketIn the basketGo

Overview

Multi-part screw connection including elastomer seal. Excellent tensile strength. Can be used to attach the hose. External thread, nickel-plated brass. Meets IP66, IP67, IP68 and IP69k.

Property	Value
Protection class (IP) depending on hose:	66
Nominal diameter:	32 mm
Smallest inner diameter of the hose:	24.6 mm
Thread connection size:	M32 x 1.5
Total length:	45.8 mm
Total height:	40.0 mm
Thread length:	15.0 mm
Rotatable thread:	no
Nominal size in inches:	1 Inch
Version:	straight
Design:	external thread
One-piece:	no
Material of the housing:	brass
Surface:	nickel-plated
Operating temperature:	-50 to 135 °C
Thread number:	1
Thread type:	metric
Type of connection of the screw connection to the housing:	thread

Characteristics

One-pieceNo

Total height40.0 mm

Connection type of screw connection to the housingThread

Smallest inner diameter of the hose24.6 mm

Protection class (IP) depends on hose66

Thread Number of turns1

HABLTS32-FMC-M32-NPB/PA HelaGuard

Minimal order2 pieces

Manufacturer

HAN166-32208

GTIN4031026308159

VersionStraight

DesignExternal thread

Rotating threadNo

Operating temperature-50 to 135 °C

Overall length45.8 mm

Thread connection sizeM32x1.5

Thread typeMetric

Thread length15.0 mm

Nominal diameter32 mm

Nominal size in inchesInch

SurfaceNickel-plated

Housing materialBrass
