HellermannTyton 166-32210 LTS50-FMC-M50-NPB/PA HelaGuard metal cable gland

HellermannTyton 166-32210 LTS50-FMC-M50-NPB/PA HelaGuard metal cable gland

In stock

SKU: 630981

Price on request

€76.76

€0

Into a basketIn the basketGo

Overview

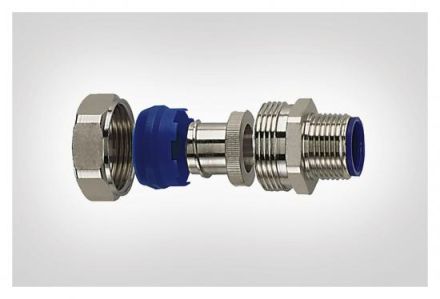

Multi-part screw connection including elastomer seal. Excellent tensile strength. Can be used to attach the hose. External thread, nickel-plated brass. Meets IP66, IP67, IP68 and IP69k.

Property	Value
Protection class (IP) depending on hose:	66
Nominal diameter:	50 mm
Smallest inner diameter of the hose:	37.7 mm
Thread connection size:	M50 x 1.5
Total length:	53.0 mm
Total height:	58.0 mm
Thread length:	18.0 mm
Rotatable thread:	no
Nominal size in inches:	1 1/2 inch
Design:	straight
Design:	external thread
One-piece:	no
Material of the housing:	brass
Surface:	nickel-plated
Operating temperature:	-50 to 135 °C
Thread number:	1
Thread type:	metric
Type of connection of the screw connection to the housing:	thread

Characteristics

One-pieceNo

Total height58.0 mm

Connection type of screw connection to the housingThread

Smallest inner diameter of the hose37.7 mm

Protection class (IP) depends on hose66

Thread Number of turns1

HABLTS50-FMC-M50-NPB/PA HelaGuard

Manufacturer

HAN166-32210

GTIN4031026308173

VersionStraight

DesignExternal thread

Rotating threadNo

Operating temperature-50 to 135 °C

Overall length53.0 mm

Thread connection sizeM50x1.5

Thread typeMetric

Thread length18.0 mm

Nominal diameter50 mm

Nominal size in inches1 1/2 inch

SurfaceNickel-plated

Housing materialBrass
