HellermannTyton 166-32213 LTS20-FMC-PG16 HelaGuard metal cable gland

HellermannTyton 166-32213 LTS20-FMC-PG16 HelaGuard metal cable gland

In stock

SKU: 630984

Price on request

€19.60

€0

Into a basketIn the basketGo

Overview

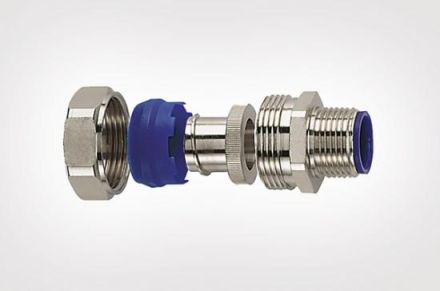

Multi-part screw connection including elastomer seal. Excellent tensile strength. Can be used to attach the hose. External thread, nickel-plated brass. Meets IP66, IP67, IP68 and IP69k.

Property	Value
Protection class (IP) depending on hose:	66
Nominal diameter:	20 mm
Smallest inner diameter of hose:	14.5 mm
Thread connection size:	PG16
Total length:	32.5 mm
Total height:	26.0 mm
Thread length:	11.0 mm
Rotatable thread:	no
Nominal size in inches:	1/2 inch
Design:	straight
Construction:	external thread
One-piece:	no
Material of the housing:	brass
Surface:	nickel-plated
Operating temperature:	-50 to 135 °C
Thread number:	1
Thread type:	other
Type of connection of the screw connection to the housing:	thread

Characteristics

One-pieceNo

Total height26.0 mm

Connection type of screw connection to the housingThread

Smallest inner diameter of the hose14.5 mm

Protection class (IP) depends on hose66

Thread Number of turns1

HABLTS20-FMC-PG16 HelaGuard

Minimal order10 pieces

Manufacturer

HAN166-32213

GTIN4031026308203

VersionStraight

DesignExternal thread

Rotating threadNo

Operating temperature-50 to 135 °C

Overall length32.5 mm

Thread connection sizePG16

Thread typeOther

Thread length11.0 mm

Nominal diameter20 mm

Nominal size in inches1/2 inch

SurfaceNickel-plated

Housing materialBrass
