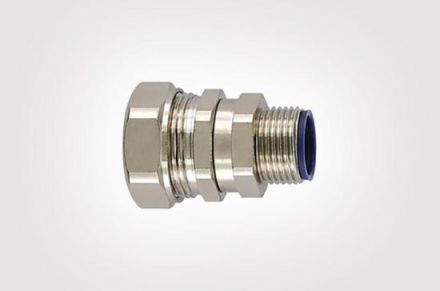

HellermannTyton 166-32302 LTS16-SMC-M20-NPB/PA HelaGuard metal cable gland

HellermannTyton 166-32302 LTS16-SMC-M20-NPB/PA HelaGuard metal cable gland

In stock

SKU: 630989

Price on request

€25.76

€0

Into a basketIn the basketGo

Overview

Multi-part screw connection including elastomer seal. Excellent tensile strength. Rotatable external thread. External thread, nickel-plated brass with steel ring. Complies with IP66, IP67, IP68 and IP69k.

Property	Value
Protection class (IP) depending on hose:	66
Nominal diameter:	16 mm
Smallest inner diameter of the hose:	10.7 mm
Thread connection size:	M20 x 1.5
Total length:	41.0 mm
Total height:	26 mm
Thread length:	10.0 mm
Rotatable thread:	yes
Nominal size in inches:	3/8 inch
Design:	straight
Design:	external thread
One-piece:	no
Material of the housing:	brass
Surface:	nickel-plated
Operating temperature:	-50 to 135 °C
Thread number:	1
Thread type:	metric
Type of screw connection to the housing:	thread

Characteristics

One-pieceNo

Total height26 mm

Connection type of screw connection to the housingThread

Smallest inner diameter of the hose10.7 mm

Protection class (IP) depends on hose66

Thread Number of turns1

HABLTS16-SMC-M20-NPB/PA HelaGuard

Minimal order10 pieces

Manufacturer

HAN166-32302

GTIN4031026308258

VersionStraight

DesignExternal thread

Rotating threadYes

Operating temperature-50 to 135 °C

Overall length41.0 mm

Thread connection sizeM20x1.5

Thread typeMetric

Thread length10.0 mm

Nominal diameter16 mm

Nominal size in inches3/8 inch

SurfaceNickel-plated

Housing materialBrass
