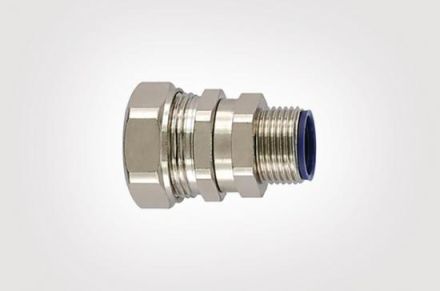

HellermannTyton 166-32303 LTS20-SMC-M20-NPB/PA HelaGuard metal cable gland

In stock
SKU: 630990
€16.04
Into a basketIn the basketGo

Overview

Multi-part screw connection including elastomer seal. Excellent tensile strength. Rotatable external thread. External thread, nickel-plated brass with steel ring. Complies with IP66, IP67, IP68 and IP69k.

PropertyValue
Protection class (IP) depending on hose:66
Nominal diameter:20 mm
Smallest inner diameter of the hose:14.5 mm
Thread connection size:M20 x 1.5
Total length:41.8 mm
Total height:29 mm
Thread length:10.0 mm
Rotatable thread:yes
Nominal size in inches:1/2 inch
Design:straight
Design:external thread
One-piece:no
Material of the housing:brass
Surface:nickel-plated
Operating temperature:-50 to 135 °C
Thread number:1
Thread type:metric
Type of screw connection to the housing:thread

Characteristics

One-pieceNo
Total height29 mm
Connection type of screw connection to the housingThread
Smallest inner diameter of the hose14.5 mm
Protection class (IP) depends on hose66
Thread Number of turns1
HABLTS20-SMC-M20-NPB/PA HelaGuard
Minimal order10 pieces
ManufacturerHellermannTyton
HAN166-32303
GTIN4031026308265
VersionStraight
DesignExternal thread
Rotating threadYes
Operating temperature-50 to 135 °C
Overall length41.8 mm
Thread connection sizeM20x1.5
Thread typeMetric
Thread length10.0 mm
Nominal diameter20 mm
Nominal size in inches1/2 inch
SurfaceNickel-plated
Housing materialBrass
