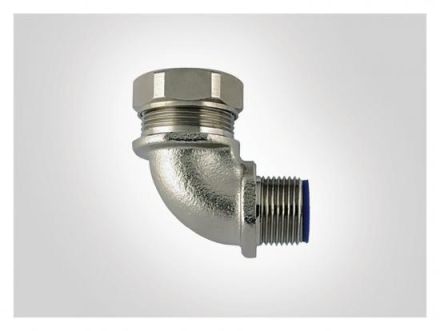

HellermannTyton 166-32406 LTS40-90FMC-M40 HelaGuard metal cable gland

HellermannTyton 166-32406 LTS40-90FMC-M40 HelaGuard metal cable gland

In stock

SKU: 630999

Price on request

€52.18

€0

Into a basketIn the basketGo

Overview

Multi-part 90° compression fitting with polyamide seal. Excellent tensile strength. 90° fitting, external thread, nickel-plated brass. Meets IP66, IP67, IP68 and IP69k.

Property	Value
Protection class (IP) depending on hose:	66
Nominal diameter:	40 mm
Smallest inner diameter of the hose:	32.7 mm
Thread connection size:	M40 x 1.5
Total length:	46.0 mm
Total height:	46.0 mm
Thread length:	18.0 mm
Rotatable thread:	no
Nominal size in inches:	1 1/4 inch
Version:	90° angle
Design:	external thread
One-piece:	no
Material of the housing:	brass
Surface:	nickel-plated
Operating temperature:	-50 to 135 °C
Thread number:	1
Thread type:	metric
Type of connection of the screw connection to the housing:	thread

Characteristics

One-pieceNo

Total height46.0 mm

Connection type of screw connection to the housingThread

Smallest inner diameter of the hose32.7 mm

Protection class (IP) depends on hose66

Thread Number of turns1

HABLTS40-90FMC-M40 HelaGuard

Manufacturer

HAN166-32406

GTIN4031026308357

Version90° angle

DesignExternal thread

Rotating threadNo

Operating temperature-50 to 135 °C

Overall length46.0 mm

Thread connection sizeM40x1.5

Thread typeMetric

Thread length18.0 mm

Nominal diameter40 mm

Nominal size in inches1 1/4 inch

SurfaceNickel-plated

Housing materialBrass
