HellermannTyton 166-33603 PCSB25 GS/PVC-ML-25M HelaGuard metal conduit

In stock

SKU: 630808

Price on request

€24.63

€0

Overview

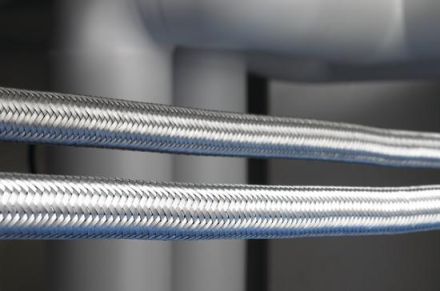

High pressure, impact and tensile strengthVery good flexibilityVery good abrasion resistanceVery good EMC protectionThe flexible protective hose made of galvanized steel with PVC sheath and galvanized steel braid is used in industrial environments where high abrasion resistance or EMC protection is required.

Property	Value
Nominal diameter:	25 mm
Surface:	galvanized
Sheathing material 1st layer:	PVC, oil-resistant
Sheathing material 2nd layer (outer):	steel wire, galvanized
Approval according to DIN EN 61386-23:	no
Nominal size in inches:	other
Inner diameter:	21.1 mm
Outer diameter:	27.2 mm
Seal:	without seal
Operating temperature:	70 °C
Bending radius, static:	55 mm
Weight:	0.5 kg/m
Color:	metallic
Electrical properties:	not clarified
Flame propagating:	no
Use in Ex areas:	no
Approval according to BWB:	no
Approval according to VDE-EMV/emc:	no
Approval according to FI:	no
With approval according to UL:	no
Approval according to CSA:	no
Material:	steel
Protection class (IP):	IP66
Bending behavior:	flexible
