HellermannTyton 166-33806 PCSB40-FM-M40-NPB-ML HelaGuard metal cable gland

In stock

SKU: 631026

Price on request

€54.57

€0

Overview

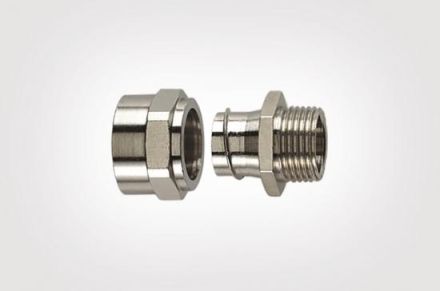

Two-part screw connection with external threadProvides tightness and secure hold of the hoseCan be fastened with a lock nutRigid external thread, nickel-plated brass.

Property	Value
Protection class (IP) depending on hose:	54
Nominal diameter:	40 mm
Smallest inside diameter of hose:	34.2 mm
Thread connection size:	M40 x 1.5
Perm. in combination with protective hose DIN EN 61386-23:	no
Total length:	42.8 mm
Total height:	50 mm
Thread length:	14.0 mm
Rotatable thread:	no
Nominal size in inches:	other
Design:	straight
Construction:	external thread
One-piece:	no
Perm. in combination with protective hose UL:	no
Approved in combination with protective hose CSA:	no
Approved in combination with protective hose FI:	no
Material of the housing:	brass
Surface:	nickel-plated
Operating temperature:	300 °C
Thread number:	1
Thread type:	metric
Connection type of screw connection to the housing:	thread
With earth connection:	no
