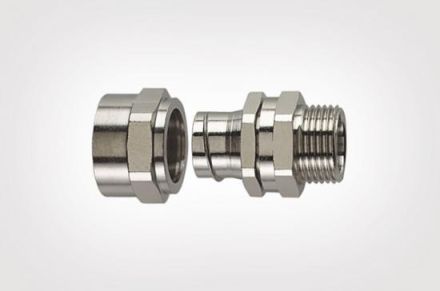

HellermannTyton 166-33912 PCSB32-SM-PG29-NPB-M HelaGuard metal cable gland

In stock

SKU: 631046

Price on request

€25.38

€0

Overview

Two-part screw connectionWith rotating external thread on the main partProvides tightness and secure hold of the hoseCan be fastened with a lock nutRotating external thread, nickel-plated brass.

Property	Value
Protection class (IP) depending on hose:	54
Nominal diameter:	32 mm
Thread connection size:	PG29
Perm. in combination with protective hose DIN EN 61386-23:	no
Total length:	52.6 mm
Thread length:	13.0 mm
Rotatable thread:	yes
Nominal size in inches:	other
Design:	straight
Construction:	external thread
One-piece:	no
Approved in combination with protective hose UL:	no
Approved in combination with protective hose CSA:	no
Permitted in combination with protective hose FI:	no
Material of the housing:	brass
Surface:	nickel-plated
Operating temperature:	300 °C
Thread number:	1
Thread type:	other
Connection type of screw connection to the housing:	thread
With earth connection:	no
