HellermannTyton 166-34402 SCSB20 GS-ML-25M HelaGuard metal conduit

In stock
SKU: 630814
€26.23
Into a basketIn the basketGo

Overview

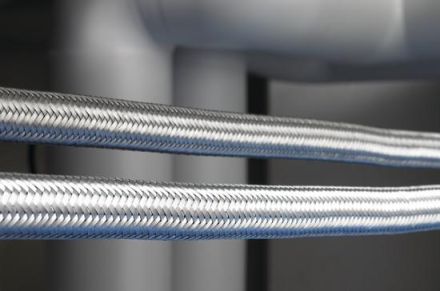

High compressive, impact and tensile strengthVery good flexibilityVery good EMC protectionVery good abrasion resistanceVery resistant to hot metal chips and splashesFlexible protective hose made of galvanized steel with galvanized steel braid for use in industrial environments and in areas where high temperature resistance is required.

PropertyValue
Nominal diameter:20 mm
Surface:galvanized
Sheathing material 1st layer:steel wire, galvanized
Sheathing material 2nd layer (outer):without sheath
Approval according to DIN EN 61386-23:no
Nominal size in inches:other
Inner diameter:16.9 mm
Outer diameter:21.5 mm
Seal:without seal
Operating temperature:300 °C
Bending radius, static:45 mm
Weight:0.45 kg/m
Color:metallic
Electrical properties:not clarified
Flame propagating:no
Use in Ex areas:no
Approval according to BWB:no
Approval according to VDE-EMV/emc:no
Approval according to FI:no
With approval according to UL:no
Approval according to CSA:no
Material:steel
Protection class (IP):IP40
Bending behavior:flexible

Characteristics

Inner diameter16.9 mm
Use in Ex areaNo
Bending radius, static45 mm
Bending behaviorFlexibel
Flame propagatingNo
HABSCSB20 GS-ML-25M HelaGuard
Minimal order25 meters
ManufacturerHellermannTyton
HAN166-34402
GTIN4031026309200
Outer diameter21.5 mm
Operating temperature300°C
Weight0.45 kg/m
Nominal diameter20 mm
Nominal size in inchesOther
SurfaceGalvanized
MaterialSteel
HellermannTyton 166-34402 SCSB20 GS-ML-25M HelaGuard metal conduit
