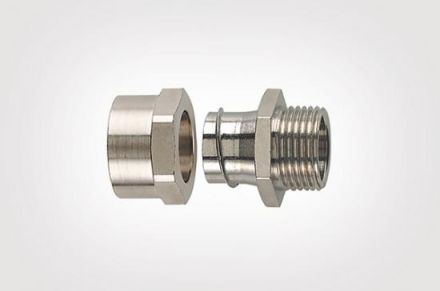

HellermannTyton 166-34612 SCSB40-FM-PG36-NPB-M HelaGuard metal cable gland

In stock

SKU: 631082

Price on request

€60.90

€0

Overview

Two-piece screw connection with external threadExcellent tensile strengthCan be fastened with a lock nutRigid external thread, nickel-plated brass.

Property	Value
Protection class (IP) depending on hose:	40
Nominal diameter:	40 mm
Thread connection size:	PG36
Perm. in combination with protective hose DIN EN 61386-23:	no
Total length:	42.8 mm
Thread length:	14.0 mm
Rotatable thread:	no
Nominal size in inches:	other
Version:	straight
Design:	external thread
One-piece:	no
Approved in combination with protective hose UL:	no
Approved in combination with protective hose CSA:	no
Permitted in combination with protective hose FI:	no
Material of the housing:	brass
Surface:	nickel-plated
Operating temperature:	300 °C
Thread number:	1
Thread type:	other
Connection type of screw connection to the housing:	thread
With earth connection:	no
