HellermannTyton 166-34703 SCSB20-SM-M20-NPB-ML HelaGuard metal cable gland

In stock

SKU: 631086

Price on request

€12.95

€0

Overview

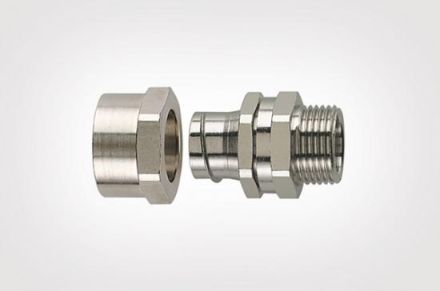

Two-piece screw connectionWith rotating external thread on the main partExcellent tensile strengthCan be fastened with a lock nutRotating external thread, nickel-plated brass.

Property	Value
Protection class (IP) depending on hose:	40
Nominal diameter:	20 mm
Thread connection size:	M20 x 1.5
Perm. in combination with protective hose DIN EN 61386-23:	no
Total length:	40.0 mm
Thread length:	10.0 mm
Rotatable thread:	yes
Nominal size in inches:	other
Design:	straight
Construction:	external thread
One-piece:	no
Approved in combination with protective hose UL:	no
Approved in combination with protective hose CSA:	no
Permitted in combination with protective hose FI:	no
Material of the housing:	brass
Surface:	nickel-plated
Operating temperature:	300 °C
Thread number:	1
Thread type:	metric
Connection type of screw connection to the housing:	thread
With earth connection:	no
