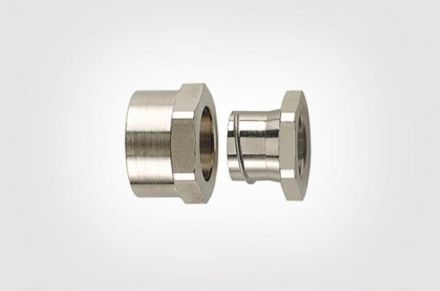

HellermannTyton 166-34805 SCSB40-PC NPB-ML-1ST HelaGuard metal cable gland

In stock

SKU: 631101

Price on request

€30.61

€0

Overview

Two-part connector without threadFastening element for the hose endFor a flat, smooth hose endProtects the cables routed in the hose from damageIntroduction bushing, nickel-plated brass.

Property	Value
Protection class (IP) depending on hose:	40
Nominal diameter:	40 mm
Thread connection size:	other
Perm. in combination with protective hose DIN EN 61386-23:	no
Total length:	28.8 mm
Rotatable thread:	no
Nominal size in inches:	other
Design:	straight
Construction:	without thread
One-piece:	no
Approved in combination with protective hose UL:	no
Approved in combination with protective hose CSA:	no
Approved in combination with protective hose FI:	no
Material of the housing:	brass
Surface:	nickel-plated
Operating temperature:	300 °C
Connection type of screw connection to the housing:	thread
With earth connection:	no
