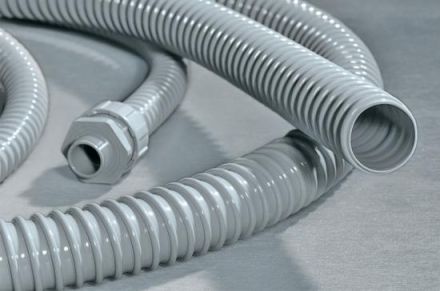

HellermannTyton 166-40005 PSR32-PVC-GY-30M HelaGuard plastic hose

In stock
SKU: 630588
€22.80
Into a basketIn the basketGo

Overview

Very flexible. Self-extinguishing. Easy cable insertion thanks to smooth interior. Can be used with PSR plastic screw joints PA66. Colors: gray, black, green (oil-resistant), blue (temperature-resistant), orange (highly flexible) on request. The flexible PVC hose with smooth interior and spiral reinforcement made of hard PVC is suitable for applications in mechanical and plant engineering as well as automation, shipbuilding and electrical installations.

PropertyValue
Nominal size in inches:other
CSA approval:yes
DIN EN 61386-23 approval:no
Nominal diameter:32 mm
Inner diameter:28 mm
Outer diameter:33.5 mm
Helix material:Hard plastic helix
Operating temperature:-20 to 70 °C
Bending radius, static:60 mm
Smooth inside:yes
Smooth outside:no
Flexibility:highly flexible
Colour:grey
Approval according to UR:yes
Approval according to N:no
Material:Polyvinyl chloride (PVC)

Characteristics

Inner diameter28 mm
Bending radius, static60 mm
HABPSR32-PVC-GY-30M HelaGuard
Minimal order30 meters
ManufacturerHellermannTyton
HAN166-40005
GTIN4031026326504
Outer diameter33.5 mm
Operating temperature-20 to 70 °C
ColorGray
Nominal diameter32 mm
Nominal size in inchesOther
MaterialPolyvinyl chloride (PVC)
