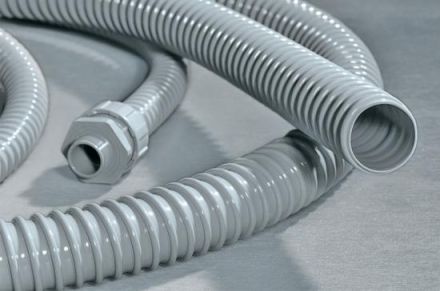

HellermannTyton 166-40007 PSR50-PVC-GY-30M HelaGuard plastic hose

In stock
SKU: 630590
€59.49
Into a basketIn the basketGo

Overview

Very flexible. Self-extinguishing. Easy cable insertion thanks to smooth interior. Can be used with PSR plastic screw joints PA66. Colors: gray, black, green (oil-resistant), blue (temperature-resistant), orange (highly flexible) on request. The flexible PVC hose with smooth interior and spiral reinforcement made of hard PVC is suitable for applications in mechanical and plant engineering as well as automation, shipbuilding and electrical installations.

PropertyValue
Nominal size in inches:other
CSA approval:yes
DIN EN 61386-23 approval:no
Nominal diameter:50 mm
Inner diameter:40 mm
Outer diameter:46.4 mm
Helix material:Hard plastic helix
Operating temperature:-20 to 70 °C
Bending radius, static:105 mm
Smooth inside:yes
Smooth outside:no
Flexibility:highly flexible
Colour:grey
Approval according to UR:yes
Approval according to N:no
Material:Polyvinyl chloride (PVC)

Characteristics

Inner diameter40 mm
Bending radius, static105 mm
HABPSR50-PVC-GY-30M HelaGuard
ManufacturerHellermannTyton
HAN166-40007
GTIN4031026326528
Outer diameter46.4 mm
Operating temperature-20 to 70 °C
ColorGray
Nominal diameter50 mm
Nominal size in inchesOther
MaterialPolyvinyl chloride (PVC)
HellermannTyton 166-40007 PSR50-PVC-GY-30M HelaGuard plastic hose
HellermannTyton 166-40007 PSR50-PVC-GY-30M HelaGuard plastic hose
€59.49
Into a basketIn the basketGo
