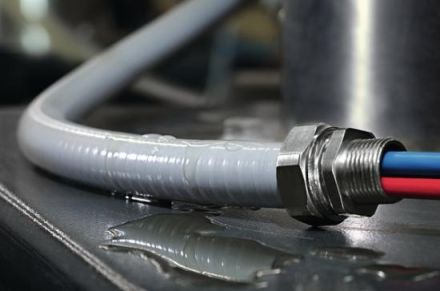

HellermannTyton 166-40302 PSRSC16-PVC-GY-30M HelaGuard plastic conduit

In stock
SKU: 630593
€12.43
Into a basketIn the basketGo

Overview

Flexible. Easy to clean the smooth outer wall. Self-extinguishing. Easy cable insertion. Limited torsional rotation. Can be used with PSR plastic screw connections PA66 and PSRSC metal screw connections. Colors: gray, black, green (oil-resistant), blue (temperature-resistant), orange (highly flexible) on request. The flexible PVC hose, smooth inside and out, with spiral reinforcement made of hard PVC, is suitable for applications in mechanical and plant engineering, food processing, automation, shipbuilding and electrical installations.

PropertyValue
Nominal size in inches:other
CSA approval:no
DIN EN 61386-23 approval:no
Nominal diameter:16 mm
Inner diameter:12.0 mm
Outer diameter:17.8 mm
Helix material:Hard plastic helix
Operating temperature:-5 to 70 °C
Bending radius, static:50 mm
Smooth inside:yes
Smooth outside:yes
Flexibility:flexible
Color:grey
Approval according to UR:no
Approval according to N:no
Material:Polyvinyl chloride (PVC)
Protection class (IP):IP68

Characteristics

Inner diameter12.0 mm
Bending radius, static50 mm
HABPSRSC16-PVC-GY-30M HelaGuard
Minimal order30 meters
ManufacturerHellermannTyton
HAN166-40302
GTIN4031026326559
Outer diameter17.8 mm
Operating temperature-5 to 70 °C
ColorGray
Nominal diameter16 mm
Nominal size in inchesOther
IP protection)IP68
MaterialPolyvinyl chloride (PVC)
