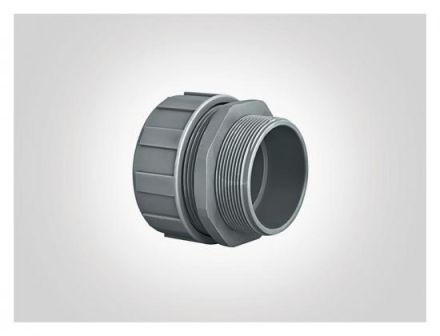

HellermannTyton 166-40707 PSR40-S-M40-PA66-GY HelaGuard plastic screw connection

In stock

SKU: 630697

Price on request

€13.32

€0

Overview

High tensile strength. Very good resistance to solvents and oils. Halogen-, sulfur- and phosphorus-free. Metric thread including lock nut. Can be used for PSR and PSRSC hoses. Straight plastic screw connection with rigid external thread. Meets IP65 with PSR hoses. Meets IP66 and IP67 with PSRSC hoses.

Property	Value
Nominal size in inches:	other
Perm. in combination with protective hose DIN EN 61386-23:	no
With integrated holder:	no
Thread connection size:	M40 x 1.5
Material of the screw connection:	Polyamide (PA)
Nominal diameter:	40 mm
Design:	straight
Rotatable thread:	no
Design:	external thread
Connection type:	snap connection
Thread length:	16 mm
One-piece:	no
Material of the seal:	without seal
Smallest inner diameter of the hose:	33 mm
Largest outer diameter of the hose:	60 mm
Total height:	60 mm
Color:	gray
Approved in combination with protective hose UR:	yes
Total length:	59 mm
Protection class (IP):	IP65
