HellermannTyton 166-41001 PSRSC12-FMC-M16 HelaGuard metal cable gland

In stock

SKU: 631110

Price on request

€15.39

€0

Overview

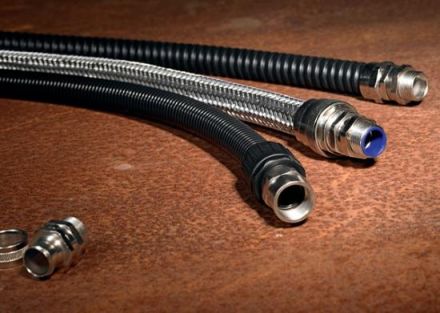

Multi-part screw connection including elastomer seal. Can be used to attach the hose. Can be used for PSRSC hoses. Straight screw connection with rigid external thread, nickel-plated brass. Meets IP66, IP67, IP68 and IP69k with PSRSC hoses.

Property	Value
Nominal size in inches:	other
With integrated holder:	no
Thread connection size:	M16 x 1.5
Material of the screw connection:	Polyamide (PA)
Nominal diameter:	12 mm
Design:	straight
Rotatable thread:	no
Design:	external thread
Connection type:	thread
Thread length:	10.0 mm
One-piece:	no
Seal material:	Polyamide (PA)
Smallest inner diameter of the hose:	8.6 mm
Largest outer diameter of the hose:	24 mm
Total height:	24 mm
Color:	other
Total length:	29.8 mm
Protection class (IP):	IP68
