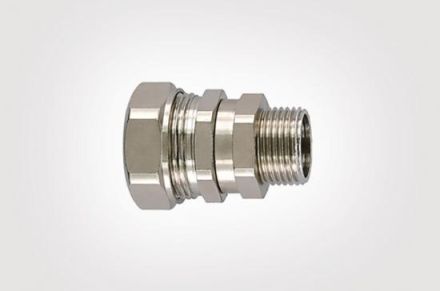

HellermannTyton 166-41102 PSRSC16-SMC-M20 HelaGuard metal screw connection

In stock

SKU: 631120

Price on request

€27.07

€0

Overview

Multi-part screw connection including elastomer seal. Can be used to attach the hose. Can be used for PSRSC hoses. Straight screw connection with rotating external thread, nickel-plated brass with steel ring. Meets IP66, IP67, IP68 and IP69k with PSRSC hoses.

Property	Value
Nominal size in inches:	other
With integrated holder:	no
Thread connection size:	M20 x 1.5
Material of the screw connection:	Polyamide (PA)
Nominal diameter:	16 mm
Design:	straight
Rotatable thread:	yes
Design:	external thread
Connection type:	thread
Thread length:	10.0 mm
One-piece:	no
Seal material:	Polyamide (PA)
Smallest inner diameter of hose:	10.7 mm
Largest outer diameter of hose:	26 mm
Total height:	26 mm
Color:	other
Total length:	41.0 mm
Protection class (IP):	IP68
