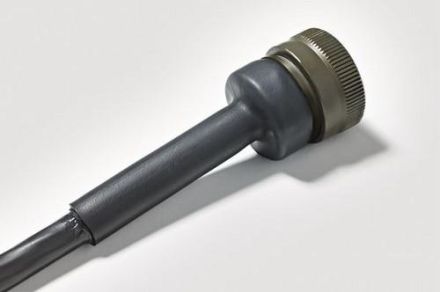

HellermannTyton 341-32080 4:1 EPS400-32,0/8,0 PO-X black 25m heat shrink tubing

In stock
SKU: 931480
€71.15
Into a basketIn the basketGo

Overview

Thin-walled: flexible, light, space-saving. 4:1 covers a larger application area, higher contact pressure. Thermoplastic inner adhesive for protection against external influences and for strain relief. Very good fire protection properties. Resistant to chemicals. Good dielectric strength. EPS is used in a variety of electronic applications as a seal and protection, such as plugs, connections and branches. Due to the high dielectric strength, EPS provides reliable protection even at higher voltage peaks. EPS-400 offers a higher contact pressure due to the higher shrink ratio.

PropertyValue
Nominal diameter in inches:other
Wall thickness after shrinking:2.50 mm
Inner diameter before shrinking:32.0 mm
Inner diameter after shrinking:8.0 mm
Length:25.0 m
Operating temperature:-55 to 125 °C
Design:thin-walled
Color:black
Material:Polyolefins (PO-X)
With inner adhesive:yes
Shrinkage ratio:4:1
Printable:no
Halogen-free:no
Type:Heat shrink

Characteristics

HAB4:1 EPS400-32.0/8.0 PO-X black 25m
Minimal order25 meters
ManufacturerHellermannTyton
HAN341-32080
GTIN4031026150031
VersionThin-walled
PrintableNo
Operating temperatur-55 to 125 °C
ColorBlack
Halogen freeNo
Inner diameter after shrinkage8.0 mm
Inner diameter before shrinking32.0 mm
Length25.0m
With inner adhesiveYes
Nominal diameter in inchesOther
Shrinkage rate4:1
TypeHeat shrink
Wall thickness after shrinkage2.50 mm
MaterialPolyolefins (PO-X)
