HellermannTyton 435-00088 i-1,5 PUR33-GN-SF 5x10 connecting sleeve

In stock
SKU: 632462
€29.29
Into a basketIn the basketGo

Overview

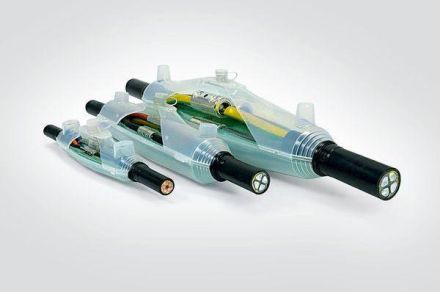

Two-part, impact-resistant, transparent molded shells. Compact dimensions. Defined cable diameters on the molded shells. SF system. Ready for use immediately. Longitudinally and transversely watertight. Fittings can be cast under the influence of water. RELICON connection fittings are suitable for electrical installations in low-voltage networks. They can be used universally for plastic cables and lines made of PVC, PE, EPR and VPE such as N(A)YY and NYCWY. Areas of application: connections and joints in industrial buildings, energy supply in the ground, outdoors and in water.

PropertyValue
Nominal conductor cross-section:1.5 to 10 mm²
Halogen-free:no
Design:Cast resin
Mining approval:no
With concentric shielding:no
For connecting paper-insulated cables with plastic-insulated cables:no
Suitable for:N(A)YY
Rated voltage U0/U (Um):0.6/1 (1.2) kV
Material of the insulation material:Plastic
Connection accessories included:without

Characteristics

Connection accessories includedWithout
Nominal conductor cross-section1.5 to 10 mm²
Rated voltage U0/U (Um)0,6/1 (1,2) kV
With concentric shieldingNo
For connecting paper-insulated cables with plastic-insulated cablesNo
HABI-1,5 PUR33-GN-SF 5x10
ManufacturerHellermannTyton
HAN435-00088
GTIN4031026631233
VersionCasting resin
Mining licenseNo
Suitable forN(A)YY
Halogen freeNo
Material of the insulation materialPlastic
HellermannTyton 435-00088 i-1,5 PUR33-GN-SF 5x10 connecting sleeve
