HellermannTyton 435-12063 Y-0 PUR33-GN-SF 4x10_4x4 connecting sleeve

In stock
SKU: 632478
€36.73
Into a basketIn the basketGo

Overview

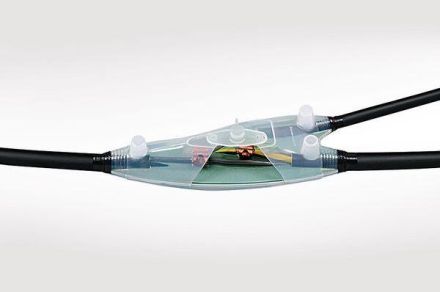

Two-part, impact-resistant, transparent molded shells. Compact dimensions. Defined cable diameters on the molded shells. SF system. Ready for use immediately. Longitudinally and transversely watertight. Fittings can be cast under the influence of water. RELICON connection fittings are suitable for electrical installations in low-voltage networks. They can be used universally for plastic cables and lines made of PVC, PE, EPR and VPE such as N(A)YY and NYCWY. Areas of application: connections and joints in industrial buildings, energy supply in the ground, outdoors and in water.

PropertyValue
Nominal conductor cross-section main cable:1.5 to 10 mm²
Nominal conductor cross-section branch cable:1.5 to 4 mm²
Design:Cast resin
Type:Y-branch
Cable diameter main cable:8 to 24 mm
Cable diameter branch cable:8 to 24 mm
Mining approval:no
Halogen-free:no
Connection accessories included:without

Characteristics

Connection accessories includedWithout
HABY-0 PUR33-GN-SF 4x10_4x4
ManufacturerHellermannTyton
HAN435-12063
GTIN4031026626802
VersionCasting resin
Mining licenseNo
Halogen freeNo
TypeY-branch
