HellermannTyton 435-12064 Y-1 PUR33-GN-SF 5x10_5x6 connecting sleeve

In stock
SKU: 632479
€37.82
Into a basketIn the basketGo

Overview

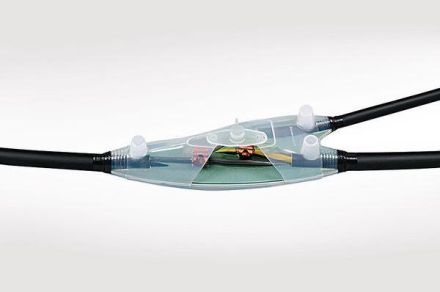

Two-part, impact-resistant, transparent molded shells. Compact dimensions. Defined cable diameters on the molded shells. SF system. Ready for use immediately. Longitudinally and transversely watertight. Fittings can be cast under the influence of water. RELICON connection fittings are suitable for electrical installations in low-voltage networks. They can be used universally for plastic cables and lines made of PVC, PE, EPR and VPE such as N(A)YY and NYCWY. Areas of application: connections and joints in industrial buildings, energy supply in the ground, outdoors and in water.

PropertyValue
Nominal conductor cross-section of main cable:1.5 to 10 mm²
Nominal conductor cross-section of branch cable:1.5 to 6 mm²
Design:Cast resin
Type:Y-branch
Cable diameter of main cable:6 to 26 mm
Cable diameter of branch cable:6 to 26 mm
Mining approval:no
Suitable for:N(A)YY
Halogen free:no
Connection accessories included:without

Characteristics

Connection accessories includedWithout
HABY-1 PUR33-GN-SF 5x10_5x6
ManufacturerHellermannTyton
HAN435-12064
GTIN4031026626819
VersionCasting resin
Mining licenseNo
Suitable forN(A)YY
Halogen freeNo
TypeY-branch
