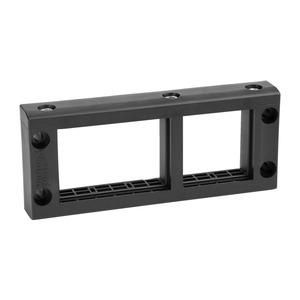

Time and space saving design. Easy to install, subsequent changes possible. Wall seal included in the frame design. Modular application for both insert sizes (S and L). Integrated strain relief. Suitable for all common standard cut-out dimensions. Integrated cable diameter tolerance compensation. For cut-out size 112 x 36-54 mm. IP 65 and IP 66. VarioPlate cable entry frames are used for time and space saving cable installation in control cabinet housings and control cabinets of all types. The versatile design covers cable diameters from 3 to 33 mm. The divisible cable entry frames are used to route cables with and without plugs. Due to the flexible internal division of the frame, only one frame is required per cut-out size. Each frame is designed for the standardized break-out dimensions. The integrated seal seals the frame reliably, thereby achieving IP 66. Additional sealing is therefore unnecessary.
