HellermannTyton 450-20022 RMS-76/22-1000-POX-B repair sleeve

In stock
SKU: 631814
€65.32
Into a basketIn the basketGo

Overview

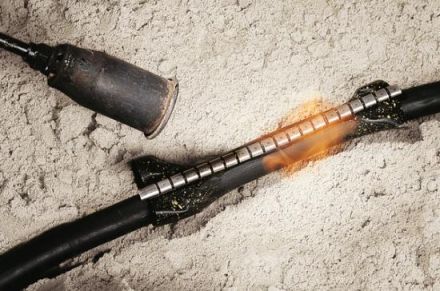

Thick-walled: very good abrasion, kinking and cut protection. 4:1 covers a wide range of applications, high contact pressure. Thermoplastic inner adhesive for protection against external influences and for strain relief. Thermochromatic dots (TCP) as a shrink indicator. Locking rail enables cable repair without the cable end. Resistant to chemicals and alkaline earths. High weather resistance. Halogen-free. Packed in a set for simple and easy handling. RMS cable repair sleeves are placed around the affected area and closed with a locking rail. During the subsequent shrinking, the hot-melt adhesive on the inside seals the damaged area watertight and also compensates for unevenness in the cable surface.

PropertyValue
Design:Shrink sleeve
Inner diameter before shrinking:76.0 mm
Inner diameter after shrinking:22.0 mm
Length:1000.0 mm
Reinforced construction:no
Wall thickness:2.50 mm
Halogen-free:yes
UV-resistant:yes
For cable outer diameter:28 mm

Characteristics

HABRMS-76/22-1000-POX-B
ManufacturerHellermannTyton
HAN450-20022
GTIN4031026406565
VersionShrink sleeve
Halogen freeYes
Inner diameter after shrinkage22.0 mm
Inner diameter before shrinking76.0 mm
Length1000.0 mm
UV-resistantYes
