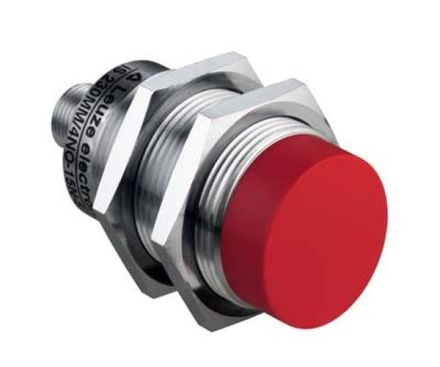

Leuze electronic Germany 50109717 IS 230MM/4NO-15N-S12 inductive sensor

Leuze electronic Germany 50109717 IS 230MM/4NO-15N-S12 inductive sensor

In stock

SKU: 625506

Price on request

€100.57

€0

Overview

Typical limit range Sn: 15 mm, operating range Sa: 0 ... 12.1 mm, supply voltage: 10 ... 30 V, DC, digital switching outputs: 1 pc., switching output 1: transistor, PNP, normally open (NO), switching frequency: 700 Hz, connection: round plug, M12, 4-pin, housing design: cylindrical, thread size: M30, dimensions: 30 mm x 63.5 mm, installation type: non-flush, housing material: metal, approvals: c UL US

Property	Value
Switching distance:	12.1 mm
Voltage type:	DC
Design of the switching output:	PNP
Mechanical installation condition for sensor:	not flush
Performance level according to EN ISO 13849-1:	without
Design of the interface:	without
Design of the switching function:	normally open
Type of actuation:	other
Switching frequency:	700 Hz
Sensor length:	63.5 mm
Pressure-resistant:	no
Rated control supply voltage Us at DC:	10 to 30 V
Suitable for safety functions:	no
Sensor diameter:	30 mm
Number of semiconductor outputs with signaling function:	1
Interface design for safety-related communication:	without
Electrical connection design:	M12 connector
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	cylinder, thread
Housing coating:	other
Cascadable:	no
Supply voltage:	10 to 30 V
With monitoring function for downstream devices:	no
Housing material:	metal

Characteristics

Diameter of the sensor30 mm

Mechanical installation condition for sensorNot flush

Design of the switching functionCloser

Switching frequency700 Hz

Supply voltage10 to 30 V

HABIS230MM/4NO-15N-S12

Manufacturer

HAN50109717

GTIN2000005491641

Type of operationOther

Implementation of the interfaceWithout

Design of the interface for safety-related communicationWithout

Design of the switching outputPNP

Design of the electrical connectionConnector M12

Rated control supply voltage Us at DC10 to 30 V

Housing coatingOther

Explosion protection category for gasWithout

Explosion protection category for dustWithout

Suitable for security functionsNo

Housing designCylinder, thread

Length of the sensor63.5 mm

Performance Level according to EN ISO 13849-1Without

Switching distance12.1 mm

Voltage typeDC

Supply voltage10 to 30 V

Housing materialMetal
