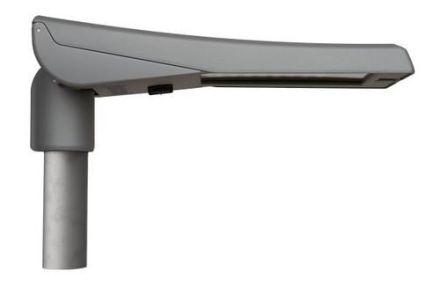

LED outdoor light, VIA, 70 W, 10300 lm, SKII, IP66, asymmetrical wide beam, 4000 K, Ra 70, Ta -40 °C/+25 °C, L90>100000 h (@ Ta max), Ready for Light Management Systems (RFL), base below (RFLU), pane clear safety glass, housing die-cast aluminum, painted, color gray, DB 702, EAN/GTIN:4041254387888.LED outdoor light VIA, consisting of powder-coated die-cast aluminum housing, hinged, with safety bracket. LED module(s) and electronic ballast mounted on tool-free removable support plates in the upper part of the housing. Cable entry with screw connection and strain relief, disconnect plug connection and pressure equalization system in the lower part of the housing, flat safety glass, silicone seal, central lock made of aluminum. Zhaga-compliant LED modules with highly efficient optics, direct beam, multi-layer technology. Electronic ballast with high surge voltage resistance, overload and short-circuit protection. Universal mast support made of die-cast aluminum for mast spigot 60/76 for mast side-entry or top-mounted mounting. Separate reduction accessories are required for mast spigot 42. Tilt adjustment 0°, 5°, 10°, 15° for top-mounted mounting, 0°, -5°, -10°, -15° for top-mounted mounting, scale on the luminaire housing. The luminaire is prepared for the subsequent use of components of a light management system with Zhaga-compliant base connection. RFL luminaires from Schuch use D4i control gear without exception. All D4i-Zhaga-Buch-18-certified controllers and D4i-Zhaga-Buch-18-certified sensors available on the market can be used in combination with RFL lights from Schuch. Controllers and sensors that do not comply with the D4i standard, however, can limit the functionality of the lights and components. In addition, in individual cases, such non-certified components can cause damage to both the lights and the components.
