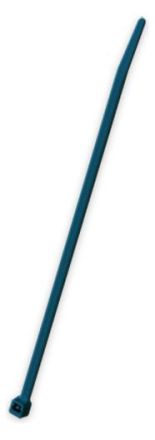

Unex 2221DT detectable 2.5x101mm blue U62X cable ties

In stock
SKU: 996239
€0.07
Into a basketIn the basketGo

Overview

New detectable cable tie for bundling cables in machines and equipment in the food and pharmaceutical industries as well as in all areas sensitive to contamination where detection devices are used. Raw material developed in-house to prevent breakage. Insulating material, halogen-free. Detectable with metal detectors and X-ray machines. The blue color enables easy visual detection throughout the entire process and thus minimizes the risk of contamination. Easy assembly and easy threading. Insulating cable tie tongue with high tensile strength. Cable-friendly internal teeth. Application temperature: +85°C to -40°C. Maximum diameter: 22mm. Minimum cable bundle diameter: 1.6mm. Loop tensile strength (N) according to EN 62275: 80N (8.16 kg). It is recommended to keep the bag closed until the cable ties are used. Color: blueColor: azure blue.

PropertyValue
Band width:2.5 mm
Band length:101 mm
Max. Bundle diameter:22 mm
Halogen-free:yes
Band closure:Plastic tongue/nose
UL approval:no
Color:blue
Material:Plastic with metal pigments
Band thickness:1 mm
Installation temperature:-5 to +85 °C
Removable closure:no
Labeling area:without
Design:internally toothed
Mounting type:without
UV-stable according to ASTM D6779:no
VG approval:no
MIL approval:yes
Min. Holding force:80 N
Material quality:other
Surface:untreated
Transparent:no
Reflective (luminous color):no
Operating temperature:-40 to +85 °C
Flammability class of the insulating material according to UL 94:V2

Characteristics

Installation temperature-5 to +85 °C
HABDetectable 2.5x101mm blue U62X
Minimal order2000 Pieces
ManufacturerUnex
HAN2221DT
GTIN8428884036410
VersionInternally toothed
Strip thickness1 mm
Band length101 mm
Band closurePlastic tongue/nose
Mounting typeWithout
Labeling areaWithout
Operating temperatur-40 to +85 °C
Width of the band2.5 mm
Flammability class of the insulating material according to UL 94V2
ColorBlue
Halogen freeYes
Removable closureNo
MIL approvalYes
Max. bundle diameter22 mm
Min. holding force80N
SurfaceUntreated
Reflective (luminous color)No
TransparentNo
UL approvalNo
UV-stable according to ASTM D6779No
VG approvalNo
MaterialPlastic with metallic pigments
Material qualityOther
