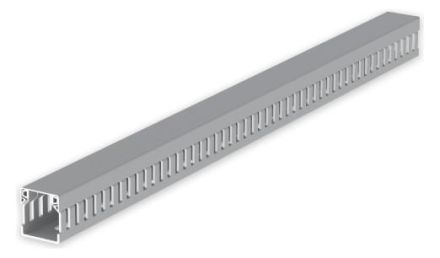

Unex 30.30.88 halogen-free light grey 30x30 U43X wiring duct

In stock
SKU: 996221
€15.76
Into a basketIn the basketGo

Overview

For routing cables in switch and data cabinets. Can also be installed hanging. Insulating material, halogen-free. Delivery length: 2m. Color: light gray RAL 7035. Fire safety. VDE-ROHS certified. Easy installation and maintenance. Easy assembly and disassembly of the cover. Operational safety and cost reduction: no sharp edges. Side tabs with great flexibility and the option of bending or breaking off. The side tabs do not injure hands or cables.

PropertyValue
Height:30 mm
Width:30 mm
Length:2000 mm
Colour:light grey
Diameter:4.20 mm
Halogen-free:yes
With top:yes
Slot spacing:6 mm
Slot width:4 mm
Side wall design:slotted
Flexible:no
Tracking current resistant:yes
Usable cross-section:728 mm²
Mounting type:Bottom perforation
Self-extinguishing:yes

Characteristics

Self-extinguishingYes
HABHalogen-free light grey 30x30 U43X
Minimal order60 meters
ManufacturerUnex
HAN30.30.88
GTIN8428884014487
Mounting typeBottom perforation
Width30 mm
Diameter4.20 mm
FlexibleNo
Halogen freeYes
Height30 mm
Length2000 mm
