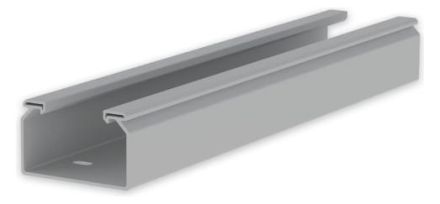

Unex 66101 light grey RAL7035 60x100 U23X unperforated cable tray

In stock
SKU: 996263
€16.36
Into a basketIn the basketGo

Overview

For carrying, protecting and guiding power and telecommunications cables. Insulating material. Delivery length: 3m. Color: gray. Insulating cable tray system in accordance with EN 61537:2007. Insulating cable tray system with cover in accordance with EN 50085-1:1997. Electrical safety. Mechanical safety: full load test type I in accordance with DIN EN 61537 impact resistance with protection level of up to 10J. Safety against fire: glow wire test 960°C (non-flame propagating). RoHS compliant. Resistant to chemicals. Recyclable. Quick and easy assembly. No burrs are created when cutting. Accessory for data cables. Suitable for outdoor use. Resistant to corrosion and chemicals.

PropertyValue
Height:60 mm
Width:100 mm
Length:3000 mm
Material:plastic
Surface:other
Suitable for functional integrity:no
Material thickness:4 mm
Color:light gray
RAL number:7035
Side perforation:no
Usable cross-section:4370 mm²
Mounting holes in the base:yes
NATO hole pattern:no
Design:without connectors
Wide span design:no
Stainless steel, pickled:no
Material quality:Polyvinyl chloride (PVC)
With top:no

Characteristics

Suitable for Functional integrityNo
Material thickness4 mm
HABLight grey RAL7035 60x100 U23X unperforated
Minimal order24 Meter
ManufacturerUnex
HAN66101
GTIN8428884000930
VersionWithout connector
Width100 mm
Height60 mm
Length3000 mm
SurfaceOther
RAL number7035
MaterialPlastic
Material qualityPolyvinyl chloride (PVC)
