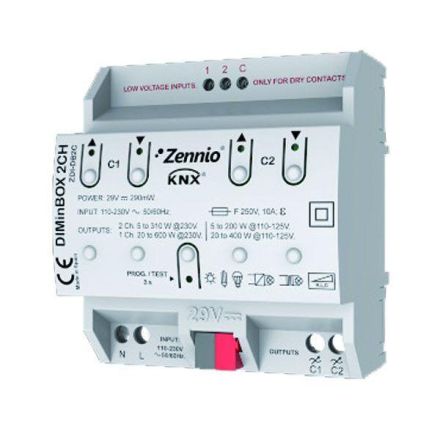

Universal dimming actuator (RLC, LED, CFL): 2 channels for up to 310W or 1 channel for up to 600W at 230V AC (2 channels for up to 200W or 1 channel for up to 400W at 110-125V AC). Auto load type detection (RLC). Configurable dimming curves for LED and CFL. The outputs can be controlled manually using the buttons on the dimmer housing. 10 independent logic functions can be parameterized. In addition, the dimmer contains 2 analog-digital inputs that can be used as binary inputs for sensors and potential-free buttons, as a temperature sensor input or as a motion detector input. Error detection: short circuit, overvoltage, overheating, abnormal frequency, supply voltage failure, idle, parameterization error. Accessories: temperature sensor and motion sensor.
