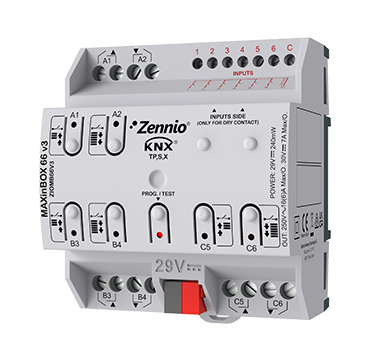

Multifunctional sensor actuator for the top hat rail (4.5 TE), which can be parameterized multifunctionally with up to 3 blind channels or up to 6 independent switching outputs for 16 A C loads. All outputs can be used for capacitive loads. Manual operation of all outputs via push buttons on the housing is possible. 10 independent logical functions can be parameterized. In addition, the actuator contains 6 additional analog/digital inputs that can be used as binary inputs for sensors and potential-free buttons, for temperature sensors or motion detectors. Four room thermostats are integrated to control heating/cooling systems. It supports KNX Secure.
