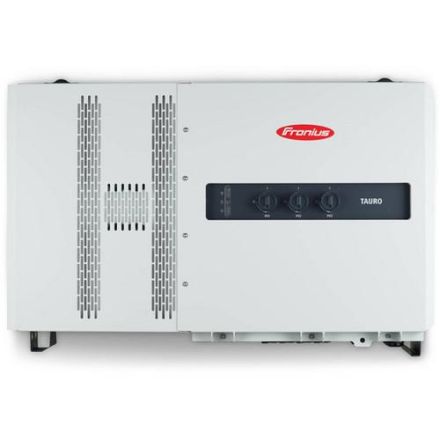

Fronius Tauro 50-3-P inverter

In stock
SKU: 917338
€6,892.62
Into a basketIn the basketGo

Overview

The standard configuration of the Tauro and Tauro ECO has been tailored for both decentralized (Direct variant) and centralized (Precombined variant) system design and is equipped with the following options: Surge protection type 1 + 2 (AC + DC) is integrated as standard and ensures that the device is fully protected. In addition, 20A fuses are integrated as standard in the Tauro 50-3-D and the Tauro Eco 50-3-D to 100-3-D. The AC section with multicore connection enables easy installation of multicore cables.

FeatureValue
Max. input power DC:75000 W
Rated voltage MPP:400 to 870 V
European efficiency:98.1 %
Rated output power AC:50000 W
Feed-in phases:3-phase
Weight:92 kg
Height:755 mm
Width:1109 mm
Depth:346 mm
Display:without
Number of independent MPPT inputs:3
Protection class (IP):IP65
With transformer:no
Emergency power capable:no
Max. input voltage DC:1000 V
Max. input current DC:36 A
Type of supply voltage:DC
Integrated DC switch:yes

Characteristics

Type of voltage of the supply voltageDC
With transformerNo
HABTauro50-3-P
ManufacturerFronius
HAN4,210,301
GTIN9007947351814
Width1109 mm
Weight92 kg
Height755 mm
IP protection)IP65
Depth346 mm
