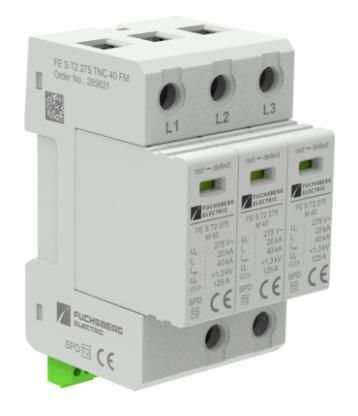

Fuchsberg Electric 285621 Type 2 FE S T2 275 TNC 40 FM DIN rail surge arrester 40kA

In stock

SKU: 953667

Price on request

€140.07

€0

Overview

Type 2, network configuration: TNC 3+0 circuit, Imax / pole = 40 kA, 3 division units, with remote signaling contact, modular design, mounting on 35 mm DIN rail

Nominal voltage	U_N	230 V AC/ 400 V AC
Maximum continuous voltage	U_C	275 V AC
Nominal discharge current (8/20 µs)	I_n	20 kA
Maximum discharge current (8/20 µs)	I_max	40 kA
Protection level	U_p	<, 1.3 kV
Short-circuit strength	I_SCCR	25 kA
Maximum back-up fuse		125 A gL/gG
TOV behavior	U_T	335 V (5 s / strength)
TOV behavior	U_T	440 V (120 min / safe failure)
Response time	t_A	25 ns
Connection cross-section rigid		4 mm² … 35 mm²
Connection cross-section flexible		4 mm² … 25 mm²
Fault indicator		with
remote signaling contact		potential-free changeover contact
Operating voltage/operating current AC/DC (FM)		250 V/0.5 A AC, 250 V/0.1 A DC
Connection cross-section remote signaling		1.3 mm²
Protection class		IP 20
Operating temperature		-40 °C … + 85 °C
Permissible humidity	RH	5% ... 95%
Mounting on		35 mm DIN rail

Characteristics

HABType 2 FE S T2 275 TNC 40 FM DIN rail

Manufacturer

HAN285621

GTIN4260574281120
